Firmware Check

If your Gainscha GS-2406T is not running Firmware 1.1.3.63R36M, you will need to update your hardware.

Download the Firmware Tool

Verify your Firmware version using the Firmware Tool:

1.    Ensure your printer is connected to your computer via USB

2.    Run the Firmware tool FWTool Release V1.0.exe

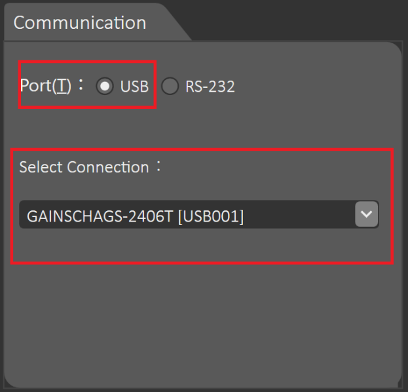

3.    In the Communication tab:

• Select USB Port and select your printer in the Select Connection drop down

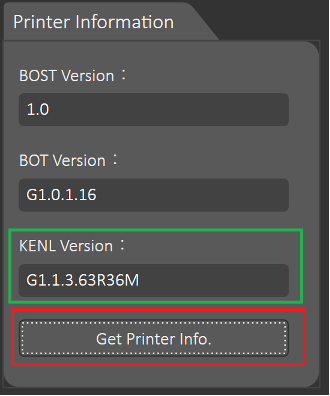

4.    In the Printer Information tab:

• Click Get Printer Info

5.    If your KENL Version does not read G1.1.3.63R36M or higher, then you need to apply a firmware update

Verify your Firmware version using the Printer Utility:

1.    Ensure your printer is connected to your computer via USB

2.    Run the Printer Utility: Printer Utility Release V3.2.5(Intelligent Series GA Series GS Series).exe

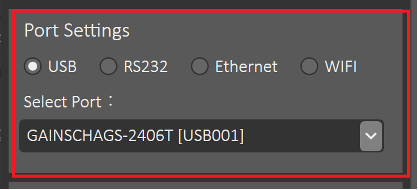

3.    In the Port Settings section:

• Select USB and select your printer in the Select Port drop down

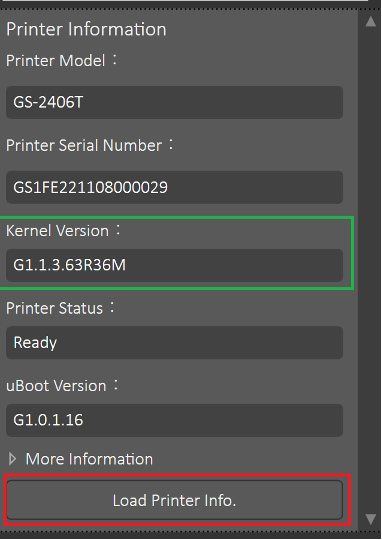

4.    In the Printer Information section:

• Click Load Printer Info


5.    If your Kernel Version does not read G1.1.3.63R36M or higher, then you need to apply a firmware update

Firmware Update

1.    Ensure your printer is connected to your computer via USB

2.    Run the Firmware tool “FWTool Release V1.0.exe”

3.    In the Communication tab:

• Select USB Port and select your printer in the Select Connection drop down

4.    In the Printer Information tab:

• Click Get Printer Info

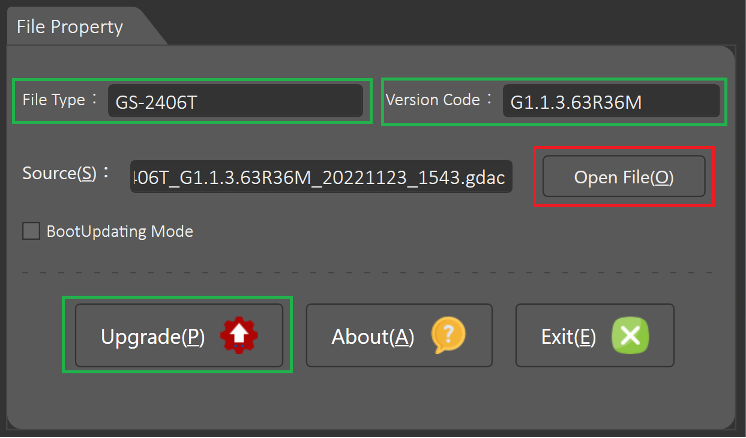

5.    In the File Property tab:

• Click Open File
• Select the firmware file GS-2406T_G1.1.3.63R36M_20221123_1543.gdac
• Click Upgrade

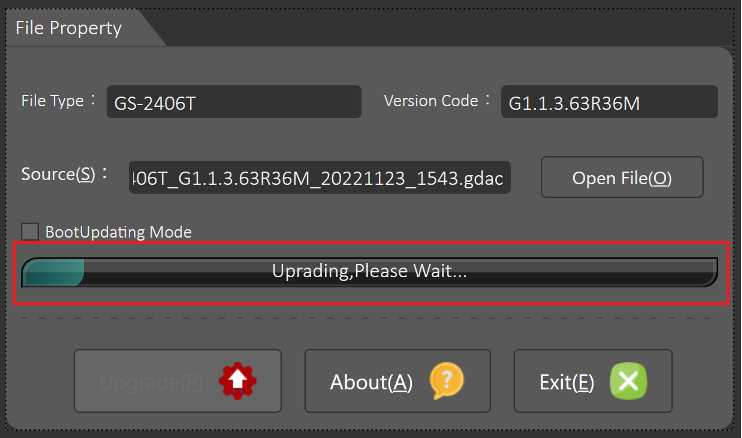

6.    Your printer firmware will be upgraded.

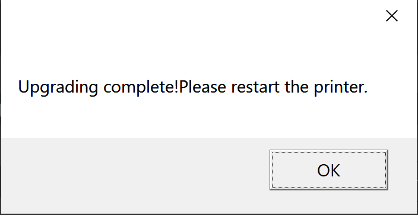

7.    Once upgraded, you will receive a confirmation

8.    You can now restart the printer and proceed with network setup (if needed).
